The Big Mac Carbonator Handles Peak Demand Without Slowing Down
Flat soda, slow recovery times, and frequent breakdowns cost you money and frustrate your customers. The McCann's "Big Mac" E-Series Carbonator was built to handle high-output environments without missing a beat. A 180-ounce stainless steel tank, 100 GPH brass pump, and two soda outlets keep your carbonated beverages crisp and flowing through every rush.
- Atomized water delivery for consistent, properly carbonated beverages every pour
- 100 GPH pump with 180 oz. tank and two soda outlets to handle peak demand
- Diamond Brite stainless steel construction that resists corrosion and cleans easily
- Exclusive two-piece probe you can service without depressurizing the tank
- Spike-resistant electronics with liquid-level float and heat sink probe cap for long service life
- UL, NSF, and low-lead certified with included ASSE 1022 backflow prevention device
- Made in the USA by McCann's (Multiplex Beverage)

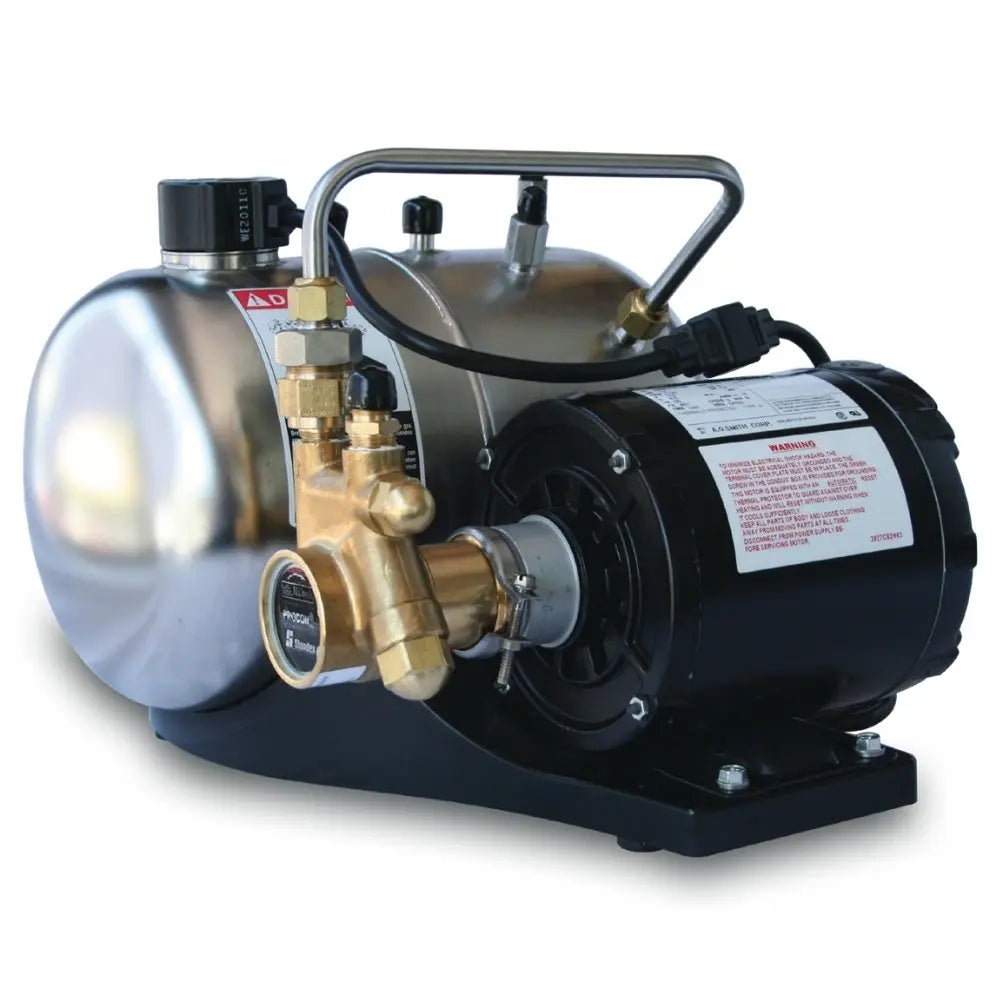

Consistent Carbonation Quality from the McCann's E400397-PP Big Mac Carbonator
At the heart of this unit is a durable rotary-vane brass water pump that delivers atomized water directly into the carbonation tank. This atomization process increases the surface area of the water, allowing CO2 to dissolve more efficiently and produce properly carbonated beverages with every pour.
The pump also includes a built-in 100 micron strainer that keeps debris out of the system, protecting both carbonation quality and internal components. A 180 PSI pressure relief valve adds another layer of protection, preventing over-pressurization that could compromise your carbonated output.
How the McCann's Fastflow Big Mac Carbonator Keeps Up During Rush Hours
Need to keep multiple dispensing stations running at once? The Big Mac's two soda outlets and 180-ounce (5.3 liter) tank give you the capacity to serve high volumes without falling behind. The 100 GPH (378 LPH) rotary-vane brass pump refills the tank quickly, so you're never left waiting during peak periods.
Pair that with a 1/3 HP motor running at 1725 RPM, and you've got a carbonator that powers through your busiest hours without breaking a sweat.
Diamond Brite Stainless Steel Construction on This McCann's Big Mac Soda Carbonator
The Diamond Brite stainless steel tank resists corrosion and cleans up easily, even after years of heavy use. This isn't a unit that degrades over time. The stainless steel body holds 180 fl. ounces (5.3 liters) of carbonated water, ready to dispense through two soda outlets simultaneously.
Specially designed probe electronics resist damage from amperage spikes, giving you greater reliability even in environments with inconsistent power. A liquid-level float assembly and heat sink probe cap work together to keep the system running without interruption and extend the overall service life of the unit.
A Two-Piece Probe Design That Cuts Your Service Time
Servicing a carbonator shouldn't mean shutting down your entire beverage system. The Big Mac's exclusive two-piece probe design lets you remove and test the probe without depressurizing the tank and without shutting off CO2 or water. The fully encapsulated electronics package is just as easy to pull out for testing and troubleshooting.
Testing the probe is straightforward:
- Remove the probe from the unit
- Pass a magnetic screwdriver tip across the lower end of the electronics tube
- If the reed switch closes, the motor starts, confirming proper function
This design means faster diagnostics, lower service costs, and less time with your system out of commission.
Backflow Protection and Safety Compliance Built Into Every Unit
Every Big Mac Carbonator ships with an Anderson Brass ASSE 1022-specified backflow prevention device already included. This protects your water supply from contamination and meets the requirements of local plumbing codes.
The unit is also certified compliant with California AB-1953 and Vermont Act 193 for low-lead standards. You'll also find UL and NSF certifications, along with a California Low Lead Qualified designation. Proudly Made in the USA.
Fitting Connections on the Soda Gun Bottle Big Mac Carbonator
The Big Mac uses standard fittings that connect to most existing beverage lines:
- 1/4" male flare for the CO2 inlet
- 3/8" male flare for the water inlet
- 3/8" male flare for the soda water outlet(s)
Before ordering, confirm that these fittings match your current setup to avoid adapter costs and installation delays.
Big Mac Carbonator Specs and Technical Details
- Model Number: E400397-PP - McCann's Big Mac Carbonator, 115V 60Hz, 180-Ounce SS Tank
- Tank Capacity: 180 fl. ounces (5.3 liters)
- Water Capacity: 100 GPH (378 LPH) maximum
- Soda Outlets: 2
- Electrical: 115V / 60 Hz / 1 phase, 1/3 HP motor, 6.5 amps, 1725 RPM
- Pump: 100 GPH rotary-vane brass pump with internal strainer and bypass relief
- Pressure Relief: 180 PSI pressure relief valve
- Backflow Protection: Anderson Brass ASSE 1022-specified backflow prevention device
- Inlet/Outlet Fittings: 1/4" male flare CO2 inlet, 3/8" male flare water inlet, 3/8" male flare soda water outlet(s)
- Dimensions: 14.0" x 13.0" x 10.5" (35.6 x 33.0 x 26.7 cm)
- Shipping Weight: 28 lbs. (12.7 kg)
- Carton Dimensions: 12" x 16" x 14.75" (30.5 x 40.6 x 37.5 cm)
- Base: Injection molded with vibration-isolating rubber feet
