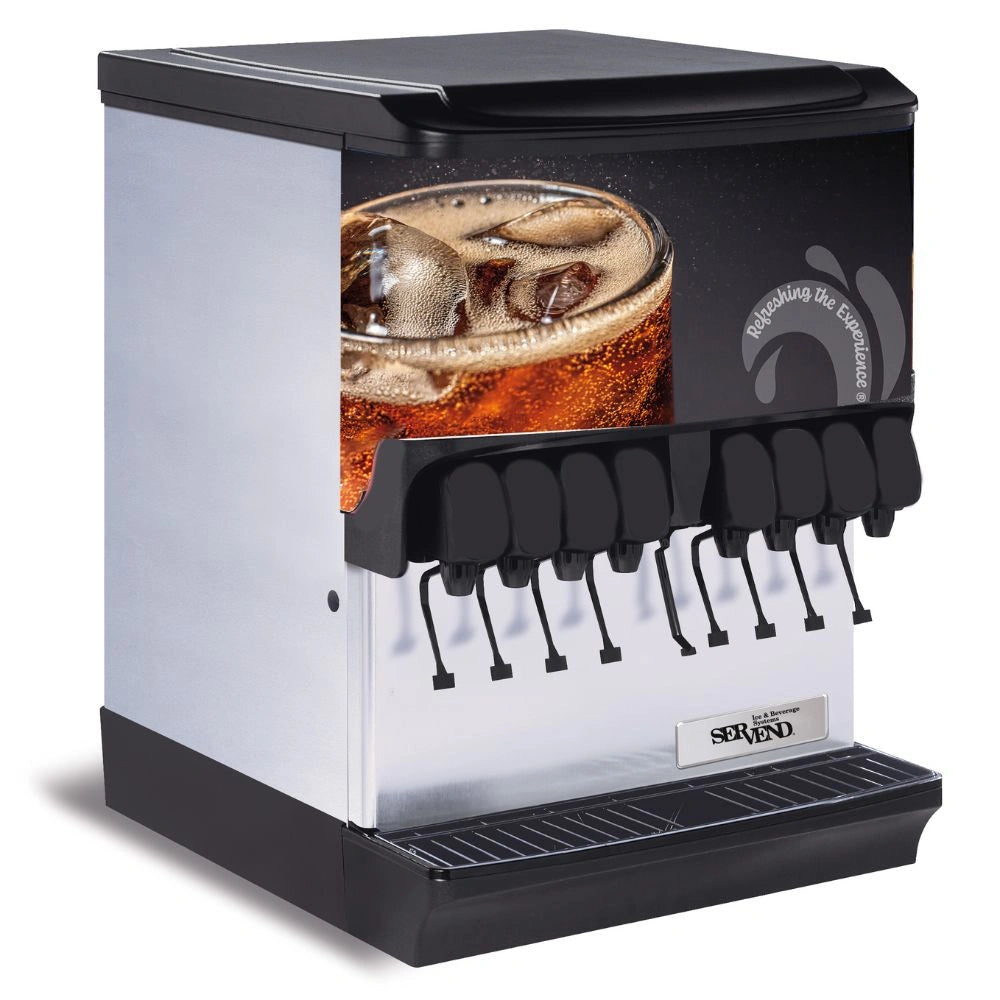

Multiplex Servend SV-175 Ice/Beverage Dispenser, 8 Valves, 175 lb. Ice Storage Capacity

Serve More Drinks from One Countertop Unit with the Servend SV-175

The Servend SV-175 packs 8 beverage valves and 175 lbs. of ice storage into a single countertop dispenser. That extra valve capacity and ice reserve means your drink station keeps moving, even during back-to-back rush periods.

A one-piece ABS base gives the SV-175 a rigid, durable foundation that won't shift or weaken over time. The multi-port flex manifold with a 3-1-1-1-2 valve grouping lets you assign each valve group to either carbonated or plain water, so you can serve sodas and non-carbonated drinks side by side. When your menu changes, you just reassign the water source at the manifold and swap the syrup line, with no major replumbing needed.

• 8 Beverage Valves to dispense up to 8 different drink flavors from one unit
• 175 lbs. Ice Storage to keep up with high-volume rush periods
• Multi-Port Flex Manifold with a 3-1-1-1-2 valve grouping that lets you assign each group to carbonated or plain water and swap drinks when your menu changes
• Flomatic® 464GP Sanitary Lever Valves standard on every unit, delivering a 2-4 oz./sec flow rate with dual flow controls for consistent, adjustable beverage dispensing at every pour
• Leg Kit Included to raise the dispenser off the countertop for easier cleaning underneath
• Drain Kit Included with a 0.75" PVC (N.P.T.) fitting for bottom or back drainage
• One-Piece ABS Base for long-term structural durability
• Patented Rocking Chute™ for consistent, simplified ice dispensing and storage
• LED-Lit Merchandiser for bright, consistent branding that stays sharp over time
• Scoop-and-Fill or Top-Mount compatible with ice machines (adapter kits available)
• Compact Countertop Footprint at 25.00" W x 31.13" D x 34.88" H

Switch Drink Types in Minutes with the Multiplex SV-175 Flex Manifold

Want to add an iced tea where a soda used to be? The SV-175's flex manifold lets you reconfigure your drink lineup without calling for service.

The SV-175 is built around an 8 valve, 3-1-1-1-2 manifold configuration. Each number in that sequence stands for one valve group, and the number itself tells you how many valves belong to that group. Across the eight valves, you get five separately controlled groups:

• Group 1 (3 valves): Valves 1, 2, and 3 are connected to a shared water supply line
• Group 2 (1 valve): Valve 4 runs on its own independent water supply line
• Group 3 (1 valve): Valve 5 runs on its own independent water supply line
• Group 4 (1 valve): Valve 6 runs on its own independent water supply line
• Group 5 (2 valves): Valves 7 and 8 are connected to a shared water supply line

You can assign each group to deliver either carbonated water (for sodas) or plain water (for lemonades, iced teas, and other non-carbonated drinks), and each group is switched independently of the others. Groups 2, 3, and 4 each operate a single valve, so you can swap one drink at a time without touching the rest of your lineup. Groups 1 and 5 share a water line among their valves, which means every valve within those groups will dispense the same water type, either carbonated or non-carbonated.

To update your menu, you simply switch a group's water source from one type to the other and hook up the new syrup line. Fast flavor change-overs reduce service complexity, so you can run different combinations of sodas and non-carbonated drinks from a single dispenser.

What this means for you:

• Update your drink lineup without replumbing or major service calls
• Adapt to seasonal menu changes or shifting customer preferences on short notice
• Serve both sodas and non-carbonated drinks from one dispenser
• Three single-valve groups let you control three drink positions individually

Flomatic® 464GP Sanitary Lever Valves for Reliable, Adjustable Dispensing

Every SV-175 ships with Flomatic® 464GP sanitary lever valves as the standard valve set. These valves deliver a 2-4 oz./sec flow rate and feature dual flow controls, which let you fine-tune both the carbonated water and syrup flow independently at each valve position. That level of control helps you maintain the correct beverage ratio and consistent drink quality across all 8 valves.

The sanitary lever design is built for high-traffic, self-serve environments where sanitation and ease of use matter. Customers push the lever to dispense their drink. The lever is simple to operate, easy to clean, and durable enough for constant daily use.

Contact us for more valve options (e.g. Autofill, Push Button, or Portion Control valves).

Stay Stocked Through Back-to-Back Rushes with 175 lbs. of Ice Storage

Running low on ice during a lunch rush can bring your entire beverage operation to a halt. The SV-175 holds up to 175 lbs. (80 kgs.) of ice, so you have a comfortable buffer even during your busiest service windows. The patented Rocking Chute™ simplifies ice dispensing and storage, giving you a more consistent ice drop with every cup.

Why the Multiplex SV-175 Is Built to Last

Durability starts at the foundation. The SV-175 uses a one-piece ABS base that adds structural rigidity across the entire unit. Unlike multi-piece bases that can loosen over time, this single-piece design holds everything in place for the long haul. The enhanced agitation and drive system delivers consistent ice dispense while also making the unit easier to service when maintenance is needed.

Flexible Ice Machine Compatibility and Installation Options

Whether you already have an ice machine or prefer to load ice yourself, the SV-175 fits into either workflow. You can scoop ice directly into the bin, or mount a compatible ice machine on top for an automatic feed. If you go the top-mount route, adapter kits are available to match your specific ice machine.

Drainage runs through a single 0.75" PVC (N.P.T.) drain fitting that can be routed from the bottom or back of the unit, making it easy to connect to your existing plumbing.

Bright, Long-Lasting Merchandiser Display That Keeps Your Branding on Show

Your beverage graphics should look just as sharp after months of service as they did on day one. The SV-175's LED-lit merchandiser panel delivers consistent, bright illumination that keeps your drink options visible and appealing to customers. Because LED lighting holds its brightness over time without dimming or yellowing, your branding stays front and center throughout the life of the dispenser. LED lighting also reduces energy usage and lifetime costs compared to traditional lighting.

Complete Specifications

• Ice Storage Capacity: Up to 175 lbs. / 80 kgs.
• Number of Valves: 8
• Manifold Configuration: 8 valve 3-1-1-1-2
• Standard Valves: Flomatic® 464GP, Sanitary Lever
• Electrical Requirements: 120V/60Hz/2.8FLA (220V/50Hz/1 also available)
• Dimensions (W x D x H): 25.00" x 31.13" x 34.88" (63.50 x 79.07 x 88.60 cm)*
• Countertop Weight (without ice): 223 lbs. / 101 kgs.
• Shipping Weight: 277 lbs. / 126 kgs.
• Drain: Single 0.75" (1.91 cm) PVC (N.P.T.), bottom or back drain
• Ice Machine Compatibility: Scoop-and-fill or top-mount with compatible ice machines
• Standard Inclusions: LED lighted merchandiser, updated graphics, key switch, leg kit, and drain kit

*Height dimension without full lid. Add 0.50" (1.27 cm) for full lid.

ADA Compliance: Contact us about product options to ensure your location is in compliance with Americans with Disabilities Act guidelines for beverage dispensers.
