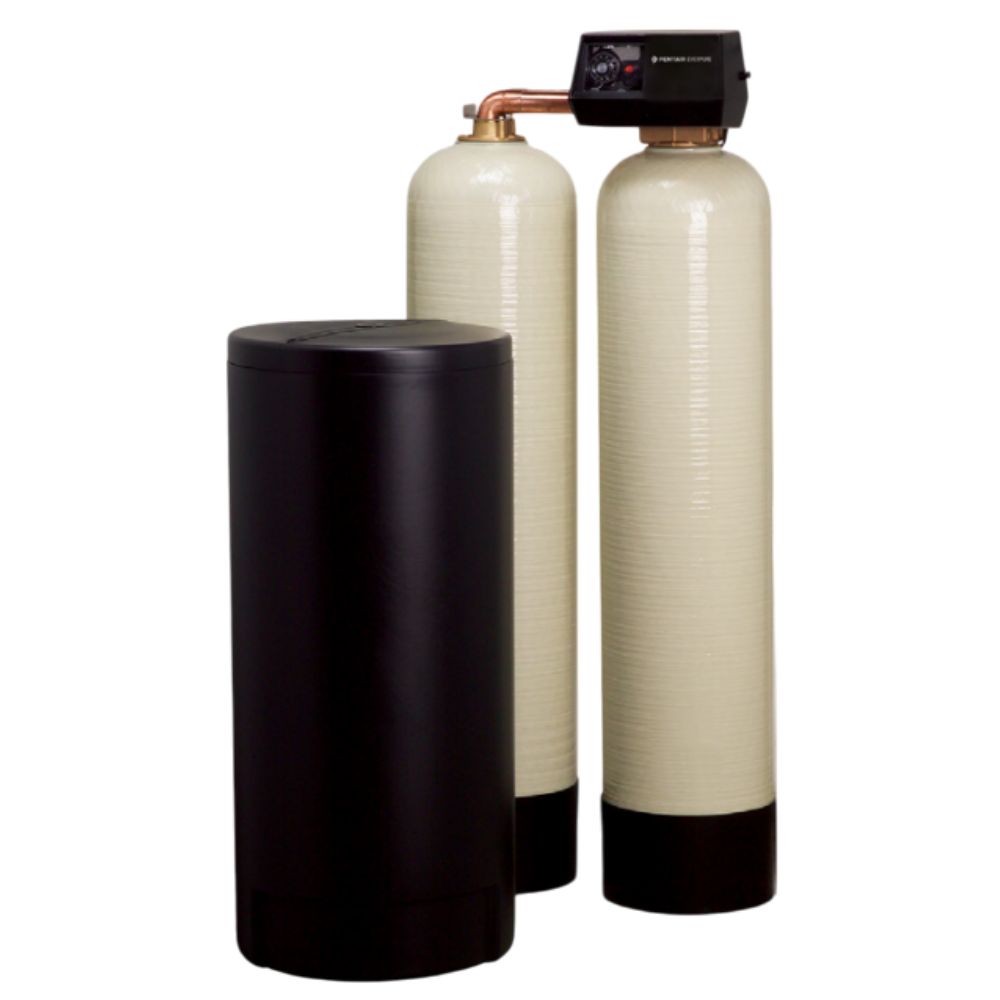

Pentair Everpure CES-9500E Twin Water Softener (For Commercial and Light Industrial Applications)
SKU EV998600
Save $3,719.72
Original Price
$9,299.30
Current Price
$5,579.58
Applications
- Tea brewing
- Reverse osmosis pretreatment
- Cold water fed warewashing
- Laundry - linen & uniform
- Boiler scale control
- Water heater scale protection/reduction
- General housekeeping
- Retail
Features • Benefits
- Hardness removal of 60,000 to 150,000 grains per tank at flow rates up to 31 gallons per minute continuous
- Electronic meter initiated regeneration minimizes salt and water usage
- Pressure vessels are manufactured with a polyethylene shell that is wound continuously with fiberglass woving and sealed with epoxy resin. This process results in corrosion-resistant, leak-free vessel
- Large capacity brine tank maximizes time between refills
- Alternating twin tank design for continuous soft water supply and reduced salt usage
- Easily adjustable 5-cycle downflow brining control
CES-9500E Series Twin Softeners Model Comparison
| Specification | CES-9500E-60 | CES-9500E-90 | CES-9500E-120 | CES-9500E-150 |
|---|---|---|---|---|
| Dimensions (H × W × D) | 63" × 54" × 19" | 74" × 65" × 24" | 74" × 67" × 24" | 77" × 73" × 24" |
| Operating Weight | 1,140 lbs (518 kg) | 1,880 lbs (853 kg) | 2,190 lbs (993 kg) | 2,570 lbs (1,166 kg) |
| Rated Capacity |
60,000 grains @ 15 lbs salt 50,000 grains @ 18 lbs salt |
90,000 grains @ 15 lbs salt 75,000 grains @ 27 lbs salt |
120,000 grains @ 15 lbs salt 100,000 grains @ 36 lbs salt |
150,000 grains @ 15 lbs salt 125,000 grains @ 45 lbs salt |
| Salt Storage Capacity | 425 lbs (193 kg) | 750 lbs (340 kg) | 750 lbs (340 kg) | 750 lbs (340 kg) |
|
Service Flow Rate @ 15 psi (1.0 bar) ΔP |
25 gpm (95 Lpm) | 28 gpm (106 Lpm) | 30 gpm (114 Lpm) | 31 gpm (117 Lpm) |
|
Service Flow Rate @ 25 psi (1.7 bar) ΔP |
32 gpm (121 Lpm) | 36 gpm (136 Lpm) | 39 gpm (148 Lpm) | 40 gpm (151 Lpm) |
| Minimum Flow Rate | 1.5 gpm (6 Lpm) | 2 gpm (8 Lpm) | 3 gpm (11 Lpm) | 4 gpm (15 Lpm) |
